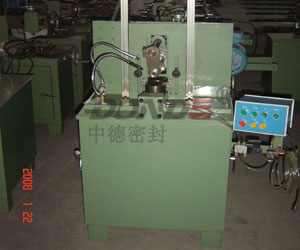

Outer Ring Groover

Item No:ZD-M20

Description:It is a vertical machine, which is designed to groove outer ring of spiral wound gasket in carbon steel and stainless steel. The diameter of ring is 200mm through 4000mm.

Easy to operate, even for unskilled worker. Several machines just need one worker, it improves productivity much.

Technical Parameter:

Ring Thickness
2-4mm
Maximum Outer Diameter
4000mm
Minimum Inner Diameter
200mm
Total Power
2.2 KW
Motor Power
0.55 KW
Voltage
380V/220V
Dimension
950*800*1250mm
Weight
320 KG
