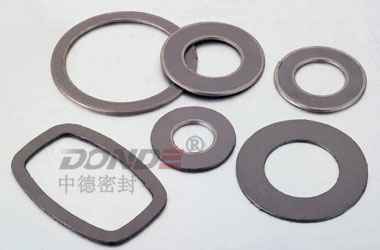

Reinforced Graphite Gasket(Tanged Graphite Gasket)

Item No.:ZD-G1110

Description:It is made from graphite as homogeneous, reinforced by metal mesh, foil or tanged metal.Laminated from compressed layers of purified natural graphite flake, and mechanically bonded with the stainless steel tangs, ensures the material retains dimensional stability in high temperatures. In addition the material seals easily under moderate bolt loads offering torque retention through service and sealing tightly even during pressure fluctuations.  Reinforced graphite gasket offers excellent sealing capabilities such as thermal stability, self-lubrication, corrosion resistance, without being brittle and aging etc., under extreme conditions with a longer life and less maintenance. It offers a high level of resistance to aggressive chemicals and its ability to withstand high pressures and extreme temperatures, up to 650°C in steam, makes it ideal for a wide range of applications.

Application:
It has very good sealing performance, low preloaded pressure, and not sticking to the flange sealing surface; used in the flange surface sealing of pipeline, valve, pump, pressure containers, heat exchanger, and reaction cauldron, etc. The film sticking PTEE can be used in food, pure water, and pharmacy sections.

Technique Specification:

1). Working temperature: -200℃~650℃
2). Working pressure: 6.4~10.0MPa
3). Min. Pre-tightening specific pressure: y=30MPa
4). Gasket coefficient: m=2
5). Max.machinable size: ~2100mm

Main Style:

1.Reinforced Graphite Gasket Without Inner or Outer Eyelet

2.Reinforced Graphite Gasket With Inner Eyelet

3.Reinforced Graphite Gasket With Outer Eyelet

4.Reinforced Graphite Gasket With Outer Eyelet & Inner eyelet

The biggest sizeOD=<2100mm (Sprcial size can also be made as request.)

Main Specification of Reinforced Graphite Gasket

Reinforced Material

Pressure

 Compressibility

Recovery

Tanged Carbon Steel Sheet

≥48N/MM2

30-35%

 15-20%

SS304/SS316 Tanged Sheet

≥48N/MM2

30-35%

15-30%

SS304/SS316 Flat Sheet

≥48N/MM2

30-40%

10-15%

SS304/316 Mesh Sheet

≥48N/MM2

40-50%

15-20%

Tin-plated Tanged Sheet

≥48N/MM2

25-30%

10-15%



Reinforced Material

Gas Permeability (cm3/min)(t=1.5mm)

Sealing Quality
(t=1.5mm)

Sealing Constant

N2 m1/hr

Bumming oil A
m1/hr

"M"

"Y"

Tanged Carbon Steel Sheet

<=0.8

30

<0.5

3.0

9000

SS304/SS316 Tanged Sheet

<=0.8

60

<0.5

2.5

4000

SS304/SS316 Flat Sheet

<=0.4

35

<0.5

2.0

900

SS304/316 Mesh Sheet

≥1.0

70

<0.5

3.0

5000

How to order:

CS Tanged Graphite Gasket ZD-G1100
SS304 Tanged Graphite Gasket ZD-G1110
SS316 Tanged Graphite Gasket ZD-G1120
