  Gasket Sheet Series
  Flexile Graphite Sheet                    Reinforced(Tanged) Graphite Sheet                     Non-asbestos Sheet
  Reinforced Non-asbestos Sheet                          Asbestos Sheet                          Reinforced Asbestos Sheet
  PTFE(Teflon) Sheet                              Expande PTFE Sheet                               Rubber Sheet
  Cork Rubber Sheet

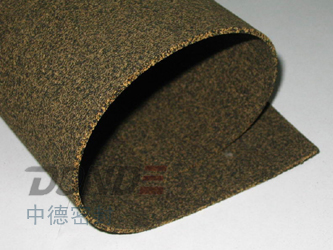

Cork Rubber Sheet

Item No.:ZD-GS2051

Description:ZD-GS2051 is a compound of cork and rubber made by using granulated cork and synthetic rubber polymer and their assistants. The product has properties of high resilience of rubber and compressibility of cork, so its performance is excellent. It can be used as gaskets of various engines of automobiles, tractorsplansshipsand pipes petroleum, transformerselectric equipment and apparatuses. It is a kind of new type high-grade static sealing materials used to seal low and medium pressure.

Common Size

LxWxT:950×640mm×0.8~100 mm (Untrimmed)

LxWxT:915×610mm×0.8~100 mm (Trimmed)

1800×650mm (New)

Packing:

Carton 950×640mm×300 mm

Main Specification:

Item

Graded by hardness

Hardness:  Shore A

55-70(Medium)

70-85(Hard)

Density: g/cm3

≤0.9(Medium)

≤1.05(Hard)

Tensile Strength: kg/cm2

≥15(Medium)

≥20(Hard)

Compressibility (% 300psi load)

15-30(Medium)

10-20(Hard)

Sealing Pressure(min)

28kg/cm2

Internal Pressure(max)

3.5kgf/cm2

Service Temp(max)

-40~120~150℃
