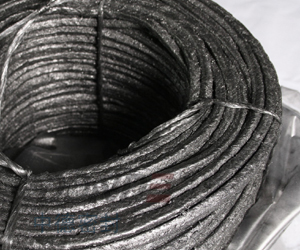

Cotton Fibre Braided Packing With Graphite Oil

Item No.:ZD-P1621

Description:Cotton Packing with Graphite & oil:Pre-impregnated cotton yarns treated with graphite, then thoroughly re-impregnated during braiding. The packing is resilient and flexible.

Application:Cotton Fibre Braided Packing With Graphite Oil is universal packing, for Rotary, reciprocating pumps, in ship building and domestic fresh water pumps.

ZD-P1621 is designed for hydraulic applications in low and medium pressure pumps and valves, and where contamination is not permitted.

Main Specification:

Temperature

=<130℃

Pressure

10bar(revolving pump) 20bar(reciprocating pump) 70bar(flange)

PH Range

6-8

Linear Speed)

10M/S

Size

3*3mm-80*80mm(or as request)

For more information,please contact with us directly,thanks!
