  PTFE Graphite Packing Series
  PTFE Graphite Fibre Packing                                                    PTFE Graphite Fibre Packing With Oil
  PTFE Graphite Filament Yarn Braided Packing                    PTFE Graphite Packing Inter Aramide
  PTFE Graphite Packing Aramide Corner

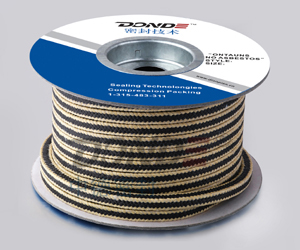

PTFE Packing With Kevlar Fibre Corner

Item No.:ZD-P1420

Description:PTFE graphite packing is high- quality combination of PTFE with incorporated graphite and reinforced edges from aramide yarn.PTFE graphite packing aramide corners is used to prevent gap extrusions within the high pressure and temperature. PTFE graphite packing aramide corners is with perfect sliding velocity and thermal conductivity. This gland packing is recommended for piston pumps long service live. PTFE graphite packing aramide corners can be used to seal water.Sewage water,hot water.It can also be used to seal oils,greases,gases.,weak acids and alkaline solutions,abrasive media.

Main Specification:

Temperature

-100℃~+260℃

Pressure)

35MPa

PH Range)

2-13

Linear Speed)

25M/S

Size

3*3mm-60*60mm(or as request)

How to Order

Item

Order Code

PTFE Graphite Fibre Packing(12% carbon)

ZD-P1210

PTFE Graphite Fibre Packing(25% carbon)

ZD-P1211

PTFE Graphite Fibre Packing With Oil

ZD-P1214

PTFE Graphite Filament Yarn Braided Packing ZD-P1215

PTFE Packing With Kevlar Fibre Corner

ZD-P1420

PTFE Graphite Packing Inter Aramide

ZD-P1421

Parameter:

INCH ″

1/8

5/32

3/16

1/4

5/16

3/8

7/16

1/2

9/16

5/8

11/16

3/4

7/8

1

MM

3

4

5

6

8

10

11

12

14

16

18

20

22

25

M / KG

50

40

27

15

10

7.5

5.6

4.3

3.1

2.8

2.4

1.9

1.4

1.1

For more information,please contact with us directly,thanks!
