　 Kevlar Fibere Packing Series 　
　 Kevlar Fibre Braided Packing                                                Kevlar Fibre Packing With Silicon Rubber Core
　 Nomex  Fibre Braided Packing                                             Spun Kevlar Fiber Packing
　 Graphited Spun Aramid Fiber Packing
　 　

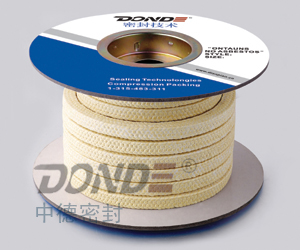

Kevlar Fibre Braided Packing

Item No.:ZD-P1400

Description:Kevlar fiber braided packing is made of Du Pont's Kevlar yarn.As the strength and module of Kevlar is as high as the steel-like strength.So kevlar fiber braided packing compared with other kinds of braided packing,kevlar fiber braided packing can resist more serve media and higher pressure. Kevlar fiber braided packing can be installed separately or as end rings with other kinds of packing to combine different characteristics into packing set.Kevlar fiber braided packing is mainly used as substitite of asbestos in pump systems. Property of Kevlar fiber braided packing is better than asbestors, and kevlar fiber braided packing covers all the services ranges which asbestos packing provided and more.Under very bad conditions where ordinary asbestos packing can not provided the satisfied effect. But kevlar fiber braided packing has long service. Kevlar fiber braided packing is usually applied to pulp factory, sand slurry,tin mine and feed water pump of power plant etc.

Main specification:

Chemical medicine （soak for 24 h in room temperature）

Descent rate of tensile strength％

Chemical medicine （soak for 24 h in room temperature）

Descent rate of tensile strength％

Chemical medicine （soak for 24 h in room temperature）

Descent rate of tensile strength％



Acid

Acetic acid 99.70%

None

Alkali

Ammonium hydroxide

None

organic solvent

Acetone



None

Hydrochloric acid 37%

None

NaOH

10

Benzene

Fluoric acid 48%

None

Other chemical medicine

Petrol

None

Alcohol

Nitric acid 70%

None

Salt water

＜0.5

Xylol

Sulphuric acid 96%

100

Boiled water

2

　

TECHNIQUE DATA

Centrifugal  separator

Reciprocating pump

Valve

PH VALUE

2~13

LINEAR Vg(M/S)

25

1.5

2

PRESSURE（Bar）

30

100

200

WORKING TEMPERATURE

-100CENTIGRADE ~ 280 CENTIGRADE

Parameter:

INCH ″ 1/8 5/32 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 11/16 3/4 7/8 1
MM 3 4 5 6 8 10 11 12 14 16 18 20 22 25
M / KG 50 35 25 15 10 7.5 5.3 4.0 3.6 2.8 2.3 1.8 1.4 1.1

How to Order：

Item

Order Code

Kevlar Fibre Braided Packing

ZD-P1400

Kevlar Fibre Packing With Silicon Rubber Core

ZD-P1401

Nomex Fibre Braided Packing

ZD-P1410

Spun Kevlar Fiber Packing

ZD-P1430

Graphited Spun Aramid Fiber Packing

ZD-P1431

For more information,please contact with us directly,thanks！
