  Metal Gasket Series
  Ring Joint Gasket            Oval Ring Joint Gasket           Octagonal Ring Joint Gasket           Lens Ring Joint Gasket
  Flat Metallic Gasket              Metallic Corrugated Gasket              Kamprofile(Serrated) Gasket
  Metallic Disc Gasket

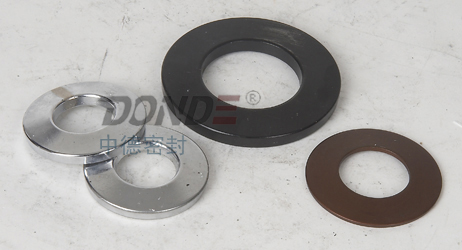

Metallic Disc Spring Gasket

Item No.:ZD-G2070

Description:ZD-G2070 heavy Load type high-temperature disc Spring gasket which is a looseness-proof gasket designed for bolt and screw connection. IDisc Spring Washer used in high temperature are lock washers designed for fastening the connection of bolts.They are produced based on standard  DIN6796, DIN2093, DIN2092, etc. Its used to connect medium or high-strength bolts.It is the involutory or congruent disc spring gasket. The involutory method combination can increase the deformation of the disc spring gasket group, and the congruent method combination can increase the spring power of the disc spring gasket group. The ideal installation method is to press to flat as possible. The more to close pressure status, the faster to increase the tension torque, no need to use the torque banner, can achieve the appropriate bolt tension.

Application:Disc Spring Washers are very useful for large bearing load and good elasticity resumption. The tension of bolt is able to endure the relaxation due to following: abrasion, deformation, relaxation, expansion due to heat, or shrinkage of wearing parts, or pressing of sealing parts. They greatly increase the elasticity of bolts, can effectively substitute for conventional spring washers, but not suitable for combinations of locking washers or flat washers.

Optional materials:

Metallic Materials

Code of Germany

Hardness/HB

Temperature/

Density g/cm3

Carbon Steel

1.1003/1.0038

90~120

-60~500

7.85

SS304,SS304L

1.4301/1.4306

30~180

-250~550

7.93

SS316,SS316L

1.4401/1,4404

30~180

-250~550

7.98



Warning: Gasket materials should never be recommended when both the temperature and the pressure are at the maximums listed.  Properties and applications shown are typical.  No application should be undertaken by anyone without independent study and evaluation for suitability. Never use more than one gasket in one flange joint, and never reuse a gasket.  Improper use or gasket selection could cause property damage and/or serious personal injury.  The data reported is a compilation of field testing, field service reports and/or in-house testing.  While the utmost care has gone into publishing the information contained herein, we assume no responsibility for errors.  The information and specifications  contained in this website are subject to change without notice. This revision cancels and obsoletes all previous editions.
