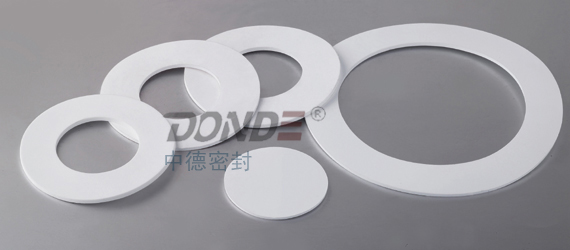

Expanded PTFE Gasket

Item No.:ZD-G1630

Description:Expanded PTFE Gaskets and Seal materials consist of virgin PTFE with multidirectional fibrous and/or porous structure, which the extruded PTFE consists of. A special manufacturing process provides the material with special chemical and physical properties. This can be of advantage in wide range of the applications.ZD-G1630 soft flexible PTFE gasket and sealing material easily conforms to sealing surface imperfections with less torque than conventional materials. Expanded PTFE resists cold flow and creep while offering the widest range of sealibility, chemical resistance, and temperature service of any material offered.

Application:Expanded PTFE gasket is designed for use in process piping and equipment in chemical, pulp and paper, food and beverage and other general industrial applications where resistance to highly aggressive chemicals is required.

Main Specification:

Color:

   White

   Temperature Range:

   -100℃—200℃

   Pressure, max:

   =<4.0MPa

   Fluid Services:

   Steam, Strong Acids, Strong Caustics,

   Aqueous and Anhydrous Hydrogen Fluoride

   Density:

   0.7-0.8 g/cm3

   Compressibility, ASTM F36:

   60%

   Recovery ASTM F36:

   15%

   DIN 3535 Gas Permeability:

   <1/100cm3

   Creep Relaxation ASTM F38:

   14%

Warning: Gasket materials should never be recommended when both the temperature and the pressure are at the maximums listed.  Properties and applications shown are typical.  No application should be undertaken by anyone without independent study and evaluation for suitability. Never use more than one gasket in one flange joint, and never reuse a gasket.  Improper use or gasket selection could cause property damage and/or serious personal injury.  The data reported is a compilation of field testing, field service reports and/or in-house testing.  While the utmost care has gone into publishing the information contained herein, we assume no responsibility for errors.  The information and specifications  contained in this website are subject to change without notice. This revision cancels and obsoletes all previous editions.
